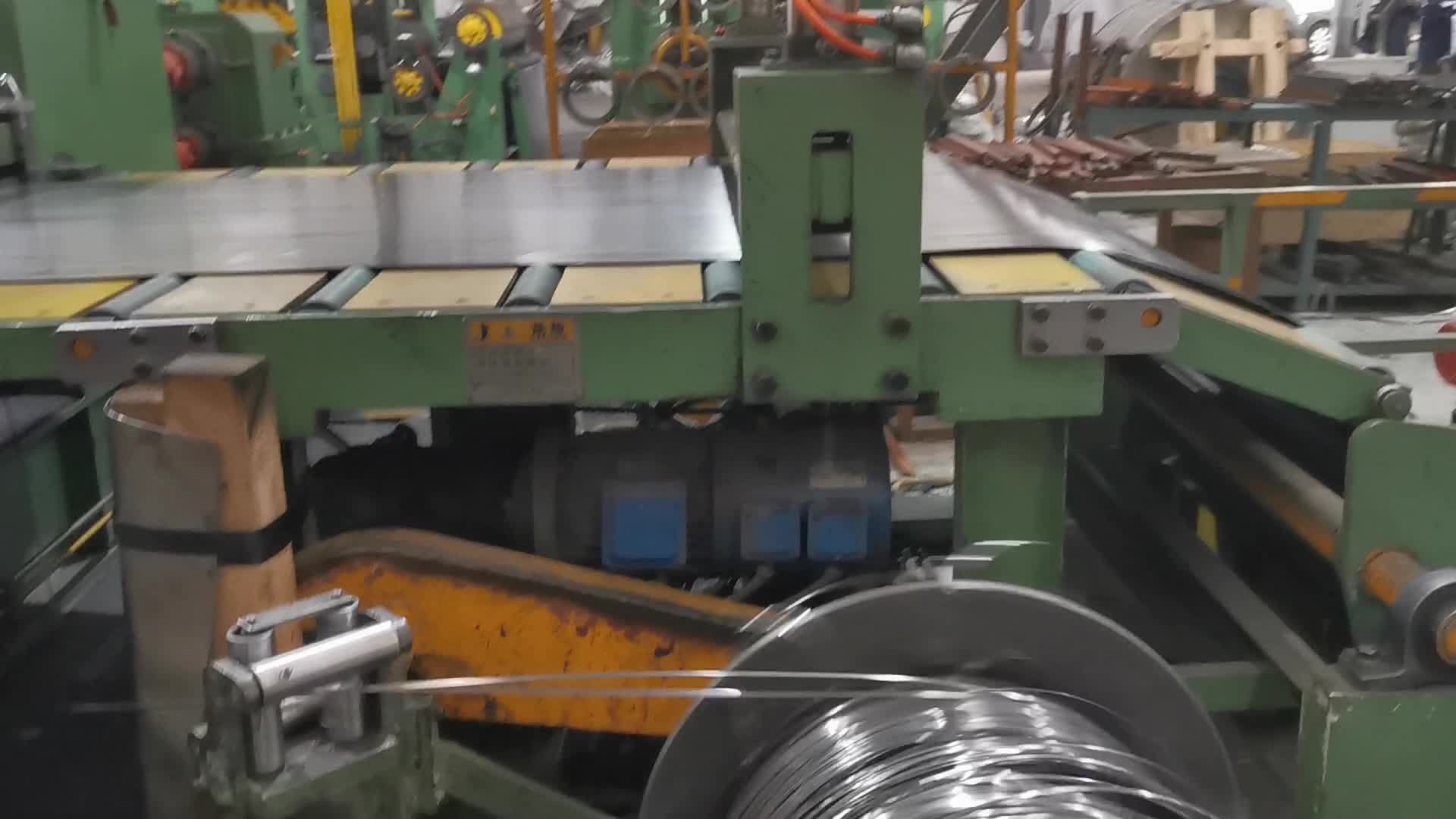

High Speed Metal Coil Slitting Machine VF Speed Adjusting Touch Screen For 0.2-1.5mm Strips

Introduction
We produce our slitting lines are to maintain high precision while allowing for changes to be made on the fly. High capacity coilers and total control over the machinery with state of the art technology to oversee quality control and automation, we offer our lines on time and on budget!

Equipment composition:

Hydraulic bracket — Carrying coil car — Hydraulic single arm decoiler — Feeding guide plate device — pinching machine , coil head shearing — Front looping table — Side guiding device — Disc shear — Scrap rewinder — Back looping table — Tension table — Recoiler — Discharging car — Hydraulic bracket — Hydraulic control — Electric control

1. Hydraulic single arm decoiler Form by bracket,guide seat,hydraulic expanding axis ,hydraulic oil cylinder and so on.Axis structure: form by 4 pieces of wedge slider.Reel is hydraulic powered and expands coil. Decoiler uses pneumatic disc type brake to work with follow-up machine line speed and have fast brake when outage, and avoid spreading because of rotated inertia.Decoiler has fixed pressing fitting, pressing wheel has PU notch so that convenient to pull out packing band and decoil.Pressing wheel is controlled by oil cylinder to lift.
2. Feeding guide plate device:Form by flexible feeding guide plate with driving cylinder.Assist decoiling and sending material so the head of coil could enter into pinching machine.Guiding plate extends and lifts to a suitable place,guiding head of coil. Plate lifting, stretching is driven by oil cylinder.
3. Scrap rewinder Type:rotating disc type.Form by motor,helical worm geared reducer,rotating disc,base and so on；Infinitive speed to make same with disc shear.
4. Function:separate the slitted coil and recoil,reel use DC adjusted motor to drive rotating and expanding and clamping by hydraulic. Clamping block is hydraulic expanding structure.Hydraulic cantilever type coil separator could enlarge when rise ,could press tightly all the time.Have pneumatic fast-brake fitting. Structure:cantilever type coil separator: form by cantilever, splitter, spacer and separator axis.Oil cylinder offers power to lift.
5. Hydraulic system Summary:hydraulic system is formed by hydraulic station and related pump,valve,pipes,hydraulic station offer power to carrying coil car,decolier,Feeding guide plate device,looping table plate,tension table,recoiler.
6. Air pressure system Summary:Form by air supple(Buyer preparing), air supple element, magnetic valve, and related pipes, cylinder
7. Manufacturing shop Producing line length is about 25meter.Manufacturing shop area should be minimum: 31M (L)*10M (W)*6M (H) You should have one set of crane which could load over 16T and other corollary equipment in manufacturing shop.

8. Main Ancillary Products Producing Company

Wuxi TPS Machinery Technology Co.,Ltd is a manufacturer was founded in year of 2001 and is located in Wuxi close to Shanghai, with staff over 100, a workshop area of 15,000 m2, a registered capital of RMB 10 million and self-run import and export licence.

Wuxi TPS Machinery produces various Cut to length lines, Coil slitting lines, kinds of metal processing lines for HR CR GI ,Carbon steel, stainless steel, Aluminium (coil slitting machine / coil slitting machine price / steel coil slitting machine for tube mill and roll forming machine. Cut to length machine / Cut to length machine price / length cutting machine / cut to length machine manufacturers / rotary shearing cut to length line Steel cut to length machine / cut to length line for sale )which are designed by Taiwan technology. We always focus on the development, study and design of high-tech products as well as the cultivation of outstanding technicians, having cultivated a management team who can manage modern enterprises expertly, an industrial team who can shape high-quality products and a hard-working employee team full of dreams and passion. The perfect combination of strength and wisdom have formed the core competitive strength of “ Yuan Yang” brand.

After more than 20 years of development, with the increase and growth of the export business, our machines have exported to more than 40 countries for example Russia, Turkey, India, Bangladesh, Pakistan, Egypt, Iran, Libya, Jordan, UAE,India, Ethiopia, Albania,Thailand, Indonesia, Vietnam, Myanmar,etc.

The outstanding quality of our products makes us share a distinguished reputation on international market.

Welcome to visit our company for cooperation.
