    Carbon Steel Tube Mill Machine / Tube Production Line ISO9001 Approved

    Ask Lasest Price
    Brand Name : TPS
    Model Number : CS12/16/25/28
    Certification : ISO9001
    Price : USD150000
    Payment Terms : L/C, T/T
    Supply Ability : 20 SETS-25SETS/PER YEAR
    Delivery Time : 4 MONTH
    • Product Details
    • Company Profile

    Carbon Steel Tube Mill Machine / Tube Production Line ISO9001 Approved

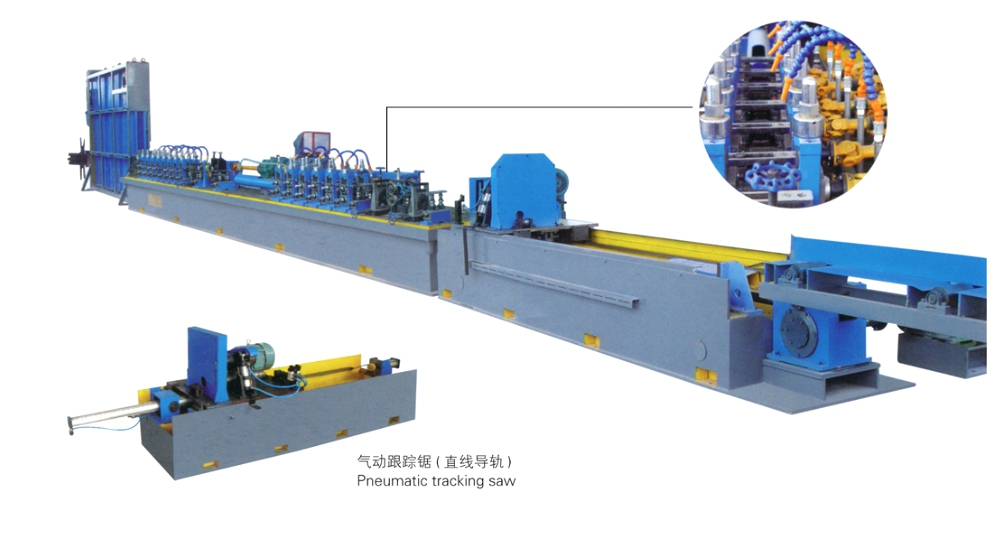

    CS12/16/25/28 Straight Seam High Frequency Welded Pipe Mill Line


    Basic Components


    Uncoiler Shearing and Butt-Welding(Prepared by Customer) Accumulator Forming Welding.Sizing Unit

    Pneumatic Tracking or Computer Controlled Length Cutting Saw Run-out table


    Main Technical Parameter

    CS12CS16CS25CS28
    Diameter of Welded TubesΦ7-16mmΦ8-25mmΦ8-32mmΦ10-50mm
    Wall Thickness of Welded Tube0.2-0.5mm0.3-1.0mm0.4-1.5mm0.5-1.8mm
    Speed of Tube Welding50-100M/min50-100M/min50-100M/min50-100M/min
    Power of Major Motor15KW22KW37KW55KW
    High Frequency Power60KW60KW60KW60KW
